Roller, universal, 110mmD, SWL 1130kg, 51mmD max cond, Al sheave, clevis, SPP

Ten Group // PULLING AND HAULING // Cable Rollers // Overhead Distribution Rollers // Roller, universal, 110mmD, SWL 1130kg, 51mmD max cond, Al sheave, clevis, SPP
Roller, universal, 110mmD, SWL 1130kg, 51mmD max cond, Al sheave, clevis, SPP


Code: SPP-1A
Brand: Scott Power Products
Product Details
Roller, universal, 110mmD, SWL 1130kg, 51mmD max cond, Al sheave, clevis, SPP


    FEATURES & BENEFITS

    • Suitable for distribution and ABC
    • Aluminium sheave
    • Lightweight high strength heat treated aluminium
    • Versatile attachment fittings include side and bottom tags and top ball socket fitting
    • Side gate latch can be locked open
    • Sheave is profile machined permitting precise sagging of conductor
    • High quality permanently lubricated high temperature precision bearings

    SPECIFICATIONS

    • Maximum OD Conductor 50mmOD
    • 1134kg WLL
    • Bottom of Groove Diameter 110mm
    • Overall Height 370mm
    • Overall Width 205mm
    • Weight 4kg
      • Specifications
      Part No.Sheave MaterialMaximum Conductor OD (mm)WLL (kg)Weight (kg)Bottom of Groove Diameter (mm)Overall Heigh (mm)Overall Width (mm)
      SPP-1AAluminium5011304110370205
      SPP-1A-DIDuctile Iron5011305110370205

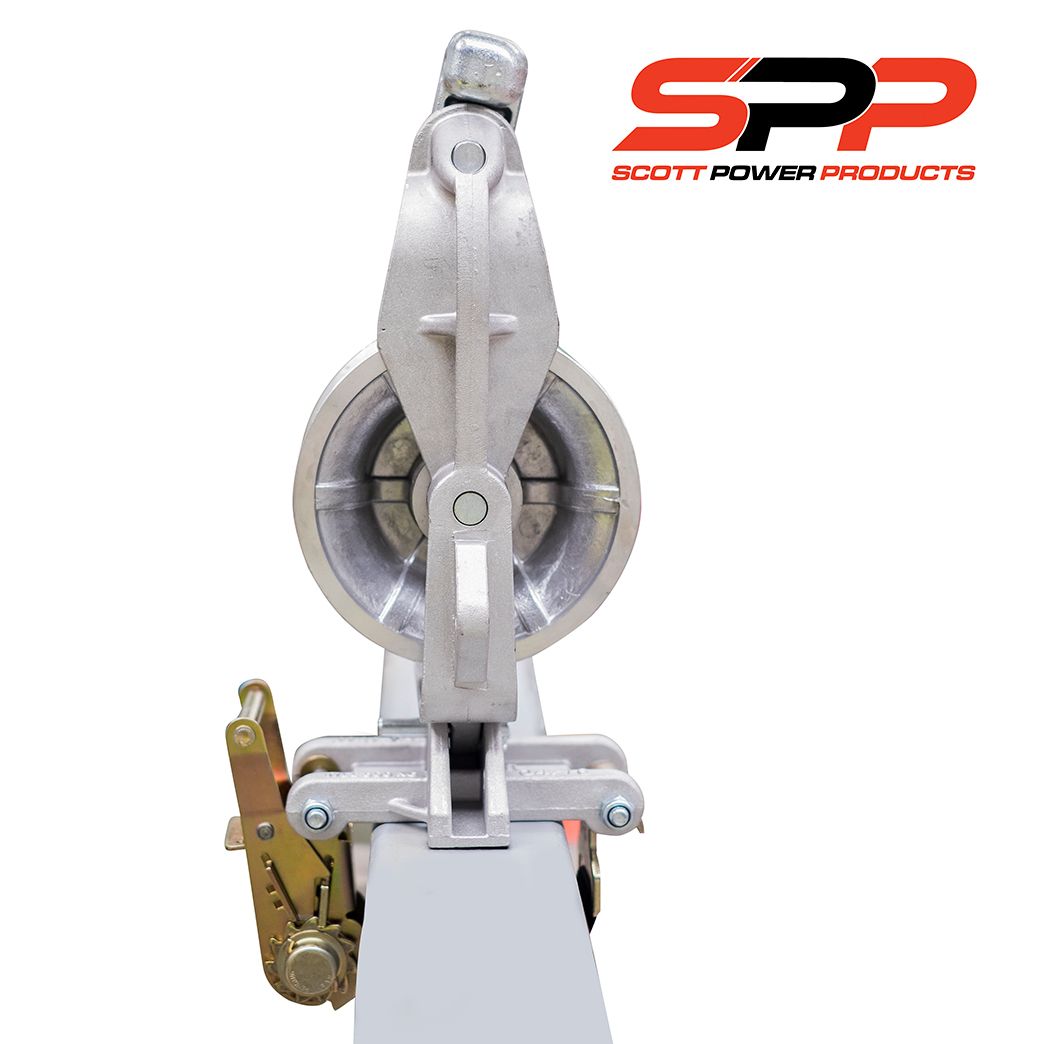

    Universal Roller SPP-1A-DI and Bracket SPP-1A-BKT Available (Sold Separately)

    Companion Products

    • SPP-1A-2A
      Insulator bracket, suit SPP-1A max 125mm OD insulator flange, sml/med neck insulators
    • SPP-1A-BKT
      Universal roller bracket, suits SPP-1A, min x-arm 100mm, pole 200-470mm OD, 500kg WLL,
    • SPP-1A-CAB
      Bracket, roller, cross arm mount, suits x-arms 127x152mm, 5X6", Al cast, SPP
    • SPP-1A-DI
      Roller, universal, 110mmD, SWL 1130kg, 51mmD max cond, Ductile Iron sheave - SPP
